Description
- Brand Name: FEIYING
- Material: Composite Material
- Upgrade Parts/Accessories: Module
- RC Parts & Accs: Module
- Use: Vehicles & Remote Control Toys
- Model Number: Matek OPTICAL FLOW & LIDAR SENSOR 3901-L0X
- Remote Control Peripherals/Devices: Module
Specification:
Brand Name: Matek System

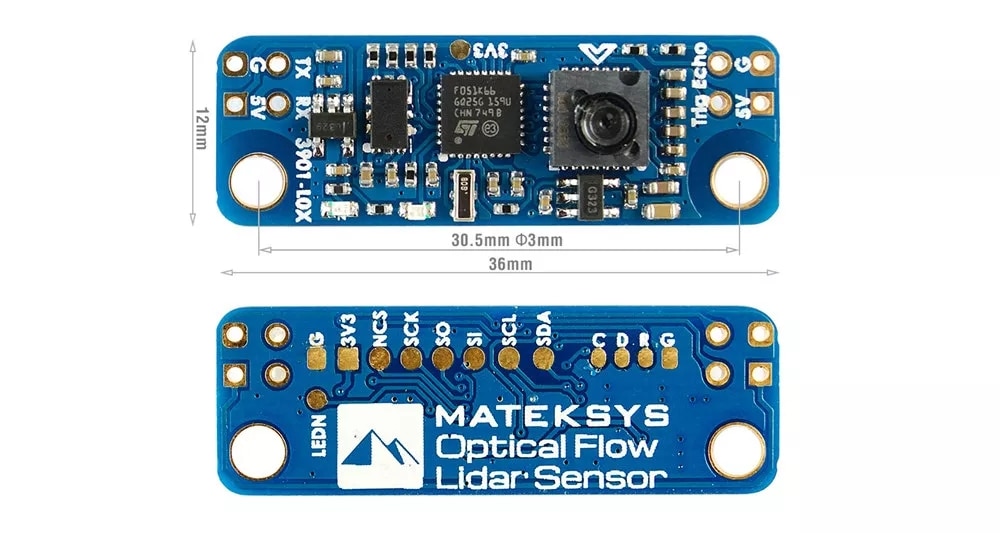

Item Name: Optical Flow Lidar Sensor 3901-L0X Module
Optical Flow: PMW3901
Lidar: VL53L0X
Interface UART
Protocol: INAV MSP
Working Range: 8cm~200cm
Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)
Minimum Illumination >60Lux
Input voltage: 4.5~5.5V
Power Consumption: 40mA

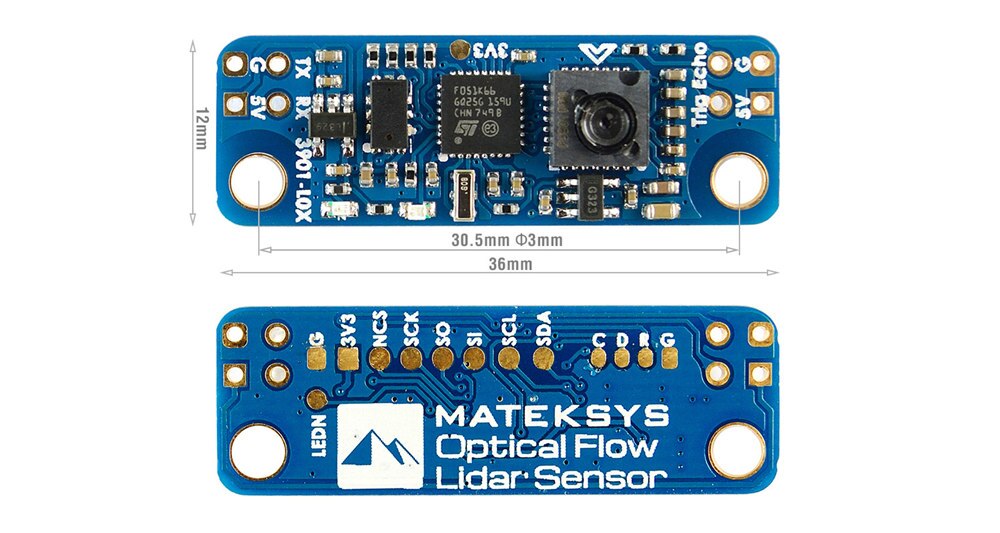

Size: 36x12mm
Weight: 2g
Tips:

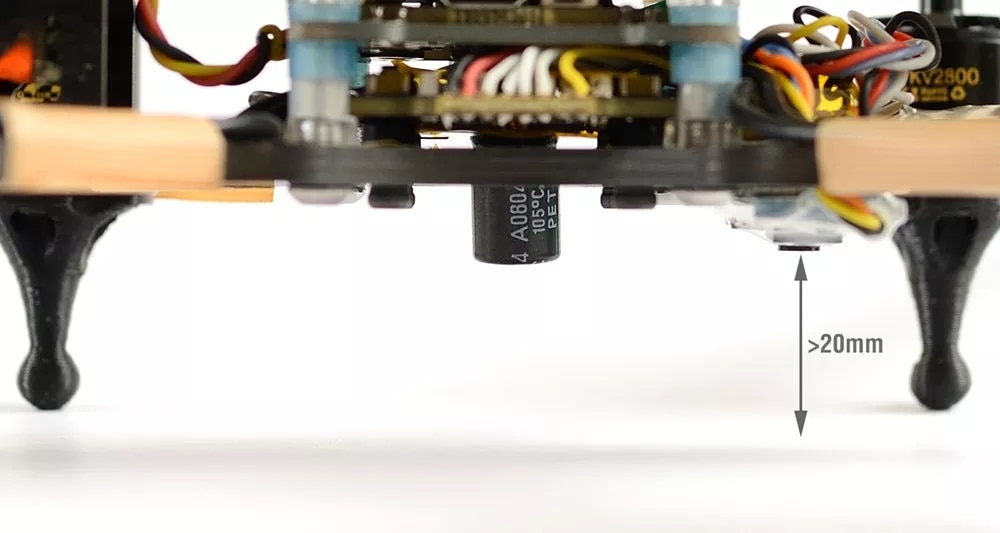

Be sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.
Maximum range of VL53L0X is 2m, Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.

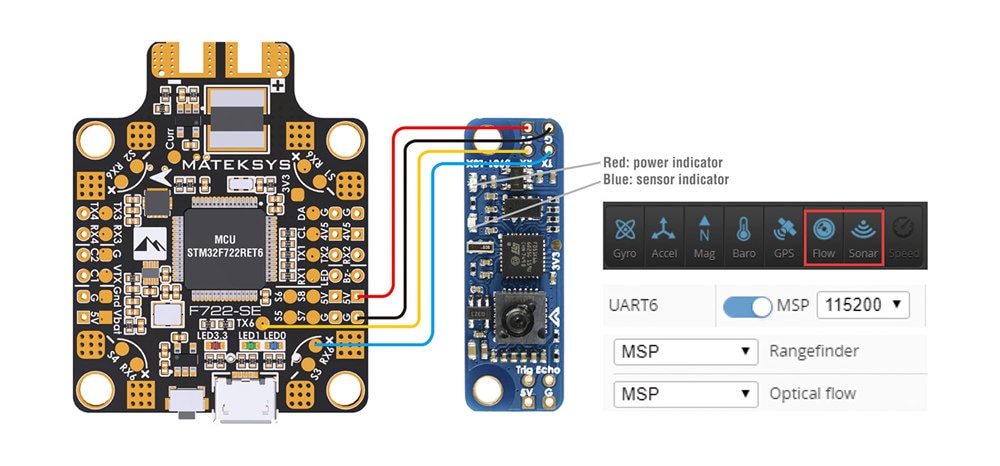

Any unused UART of FC supports it
Sonar connection (Trig & Echo) has not been implemented
Pacakge Included:
1x Optical Flow Lidar Sensor 3901-L0X Module
