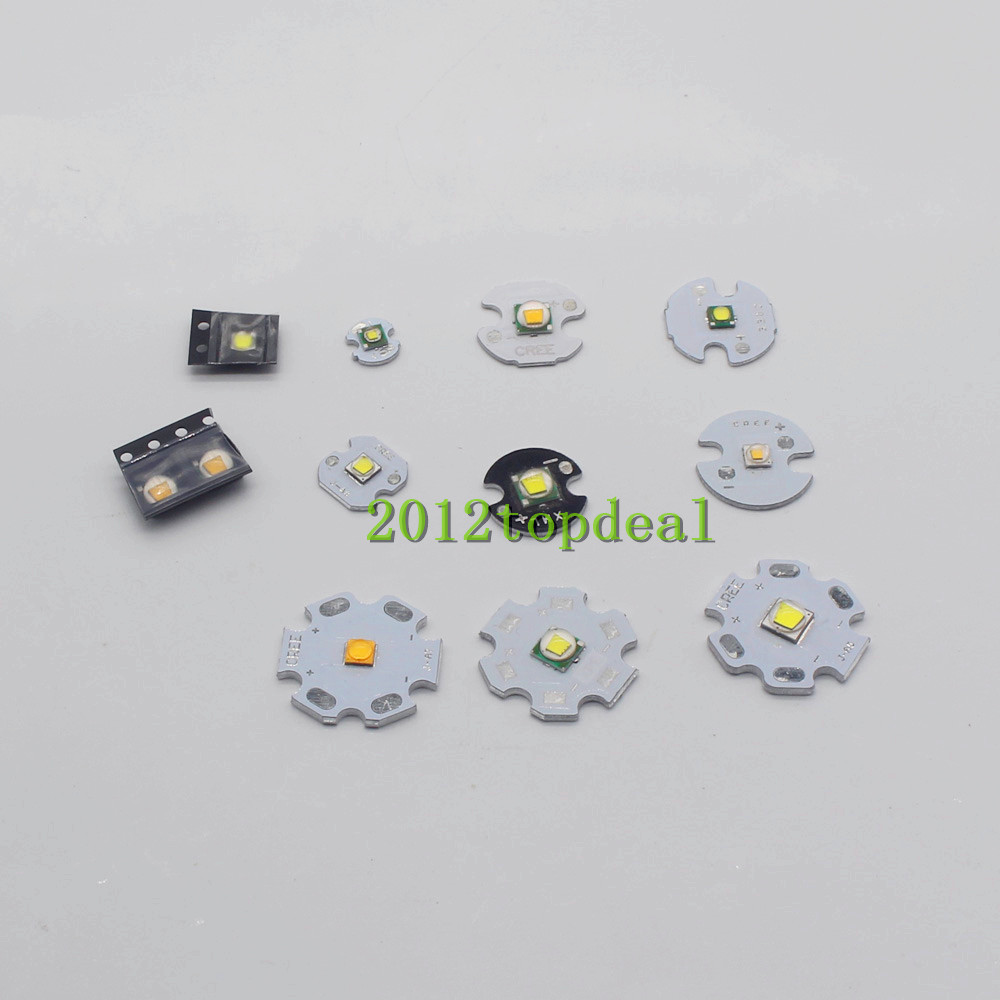

1pc CREE XPE XPE2 3W XTE XPG XPG2 XML T6 XML2 10W LED Emitter Chip Bulb High Power LED Lamp Light with 8mm 12mm 16mm 20mm PCB

$1.09$3.18

SKU: 32890719380 Category:

Description

  • Model Number: CREE
  • Voltage: 3.0-3.6V
  • Certification: ce
  • Current: 350-3000mA
  • Item Type: BALL
  • Brand Name: CHTPON

Cree 3W XPE XPE2 LED:

Highest lumen (luminous flux) 250LM

Voltage :2.85-3 .68V

Current: 350MA-700MA

Color temperature :6000-6500K/3000-3500K

Beam Angle: 115 degrees

PCB board: Diameter 16mm base

LifeSpan Time : > 50,000 hours

Cree XML XPG XPG2 XTE LED:
Emitted Color :White
Color Temperature: 6500-7000K/ 3000-3500K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF):1500mA
Power: 5W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH


Cree XML-T6 LED:
Emitted Color :White
Color Temperature: 6500-7000K/ 3000-3500K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 350mA-3000mA
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable – JEDEC J-STD-



Cree XML2 U3 LED:
DC Forward Voltage (VF): 2.9V-4Vdc
DC Forward Current (IF): 3000mA
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

Color temperature: 6000-7000K/3000-3500K

– Lumen: 341lm @ 700mA, 1116lm @3A
 The XLamp XM-L2 LED builds on the unprecedented performance of the original XM-L, increasing lumen output up to 20% while providing a single die LED point source for precise optical control. The XM-L2 LED shares the same mechanical and optical footprint as the original XM-L, providing a seamless upgrade path and shortened design cycle.

Packing includes:

1 x LED
