Description
- Origin: CN(Origin)
- Certification: NONE
- DIY Supplies: ELECTRICAL
- Model Number: WC755VS800
- Laser Type: Nd: Yag Laser
- Style: PORTABLE
- Type: Laser
- Application: For Commercial
- After-sales Service Provided: Free spare parts
- Wavelength: 755nm/808nm/1064nm
- Appliance: Permanent Hair Removal
- Keyword: Hair Removal Diode Laser
- Spot Size: 10x10mm
- Color: Golden
- Cooling system: Water Cooling System
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:446px}#detail_decorate_root .magic-3{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:-49px;margin-left:-15px;width:487px;height:487px}#detail_decorate_root .magic-5{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-6{margin:0;padding:0;color:#333;line-height:20px;font-size:16px;font-weight:bold}#detail_decorate_root .magic-7{margin:0;padding:0}#detail_decorate_root .magic-8{vertical-align:top}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-12{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-13{padding:0;margin:0}#detail_decorate_root .magic-14{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-15{margin:0;padding:0;color:#333;line-height:20px;font-size:16px}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;overflow:hidden;width:367px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;overflow:hidden;width:339px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;font-style:normal;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:630px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:630px}#detail_decorate_root .magic-22{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-23{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-24{width:244.656px;height:234px;overflow:hidden}#detail_decorate_root .magic-25{position:relative;left:0;top:0;width:244.656px;height:244.656px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-28{margin:0;padding:0;color:#333;line-height:20px;font-weight:bold}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:469.2857142857143px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:469.2857142857143px}
Product Description

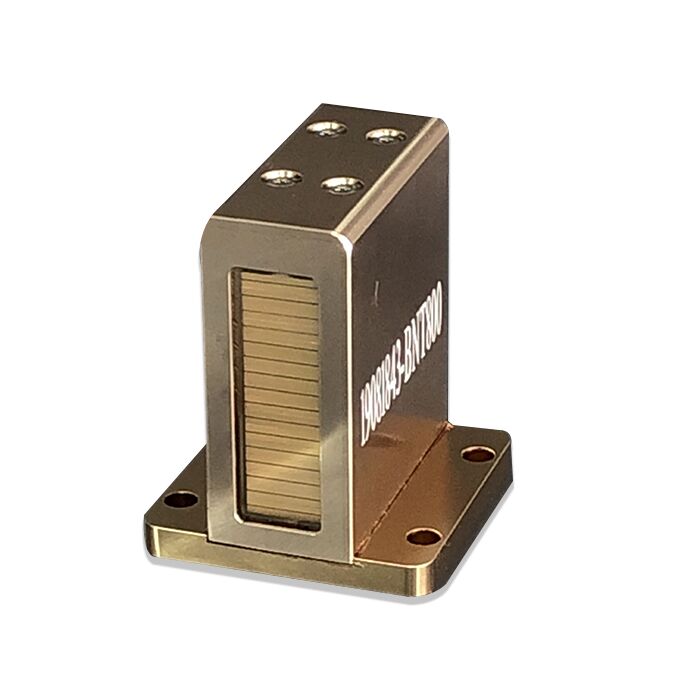

800W 755nm 808nm 1064nm 100W×8bar Water Cooled Vertical Stack Diode laser
Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality 755nm 808nm 1064nm vertical stack diode laser, micro-channel diode laser, macro-channel diode laser,water cooled diode laser, vertical array diode laser, stack bar diode laser and sells at competitive price.
No.: WC755VS800
Advantages
1.Long Lifetime
2.AuSn Bonding
3.High Power
4.Long storage time
5.Low Smile
6.row spectrum
Applications
1.Pumping
2.Industry
3.Medical
4.Printing
5.Scientific Research
Specifications
|
Optical
|
|
|
Center Wavelength λ
|
755nm, 808nm,1064nm ±15nm
|
|
Working Mode
|
QCW/Macro-Channel
|
|
Output Power Per Bar
|
50W
|
|
Number of Bars
|
16
|
|
Bar to Bar Spacing
|
3.4mm
|
|
Fast Axis Divergence(FWHM)
|
38Deg
|
|
Slow Axis Divergence (FWHM)
|
12Deg
|
|
Polarization Mode
|
TE
|
|
Slope Efficiency
|
≥1.0W/A
|
|
Pulse Width
|
≤400ms
|
|
Duty Cycle
|
≤40%
|
|
Electrical
|
|
|
Operating Current Iop
|
50~60A
|
|
Threshold Current Ith
|
20A
|
|
Operating Voltage Vop
|
28~32V
|
|
Power Conversion Efficiency
|
45%
|
|
Thermal
|
|
|
Operating Temperature (No Condensation)
|
23~27℃ (No Condensation)
|
|
Storage Temperature (No Condensation)
|
0-55℃(No Condensation)
|

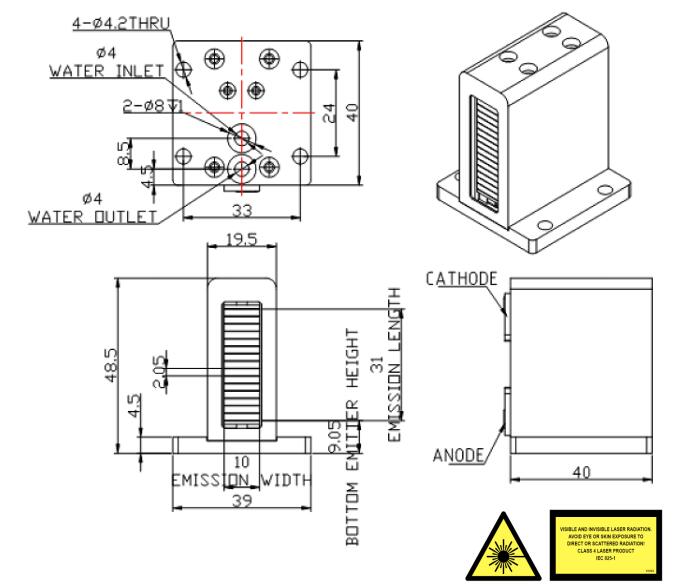

Drawing
