Description
- Brand Name: XILAIYUE
- Certification: CE
- Origin: CN(Origin)

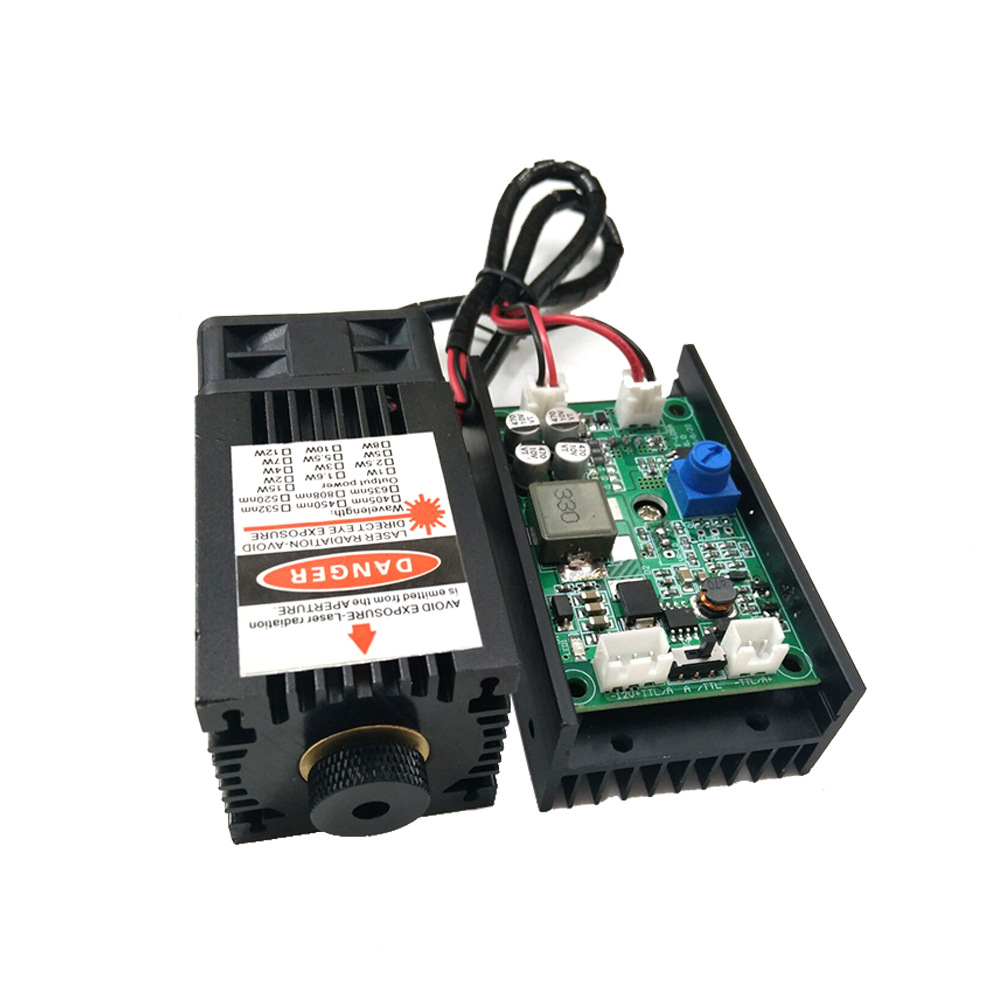

- Model Number: 15000mw Blue Laser Driver Board
Package include :
1*15W laser driver
1* laser cable
Product Description
Circuit control: 12V step-down circuit, constant current output (current and voltage are adjustable)
Output Specifications: Max 5A
Scope of application: 15W blue laser drive circuit
Dimensions: 46*80mm (width * length), component height with aluminum base 26m
Modulation voltage: 0-5V (0V off, 5V on)

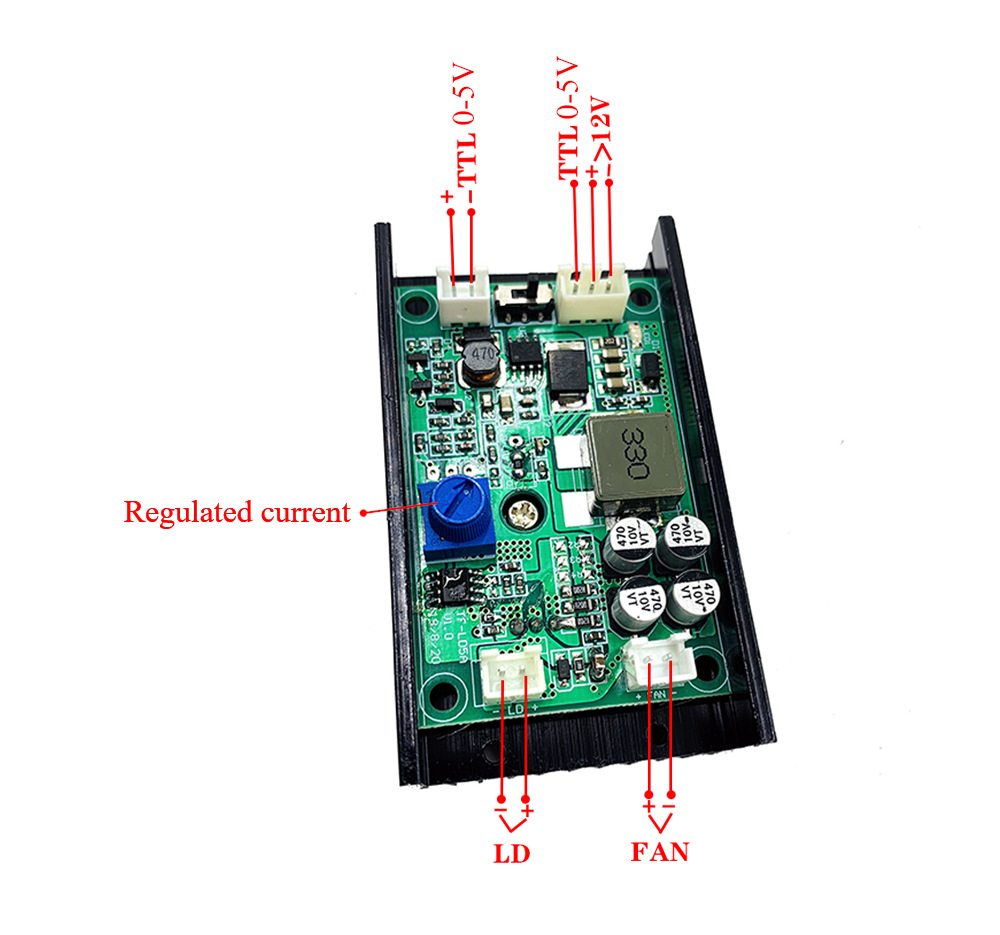

TTL modulation description: 0-5V voltage signal (0 is off, 5 is on, frequency determines the speed of laser light flashing), positive and negative as shown below
