Description
- Origin: Mainland China
- Model Number: laser head
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE

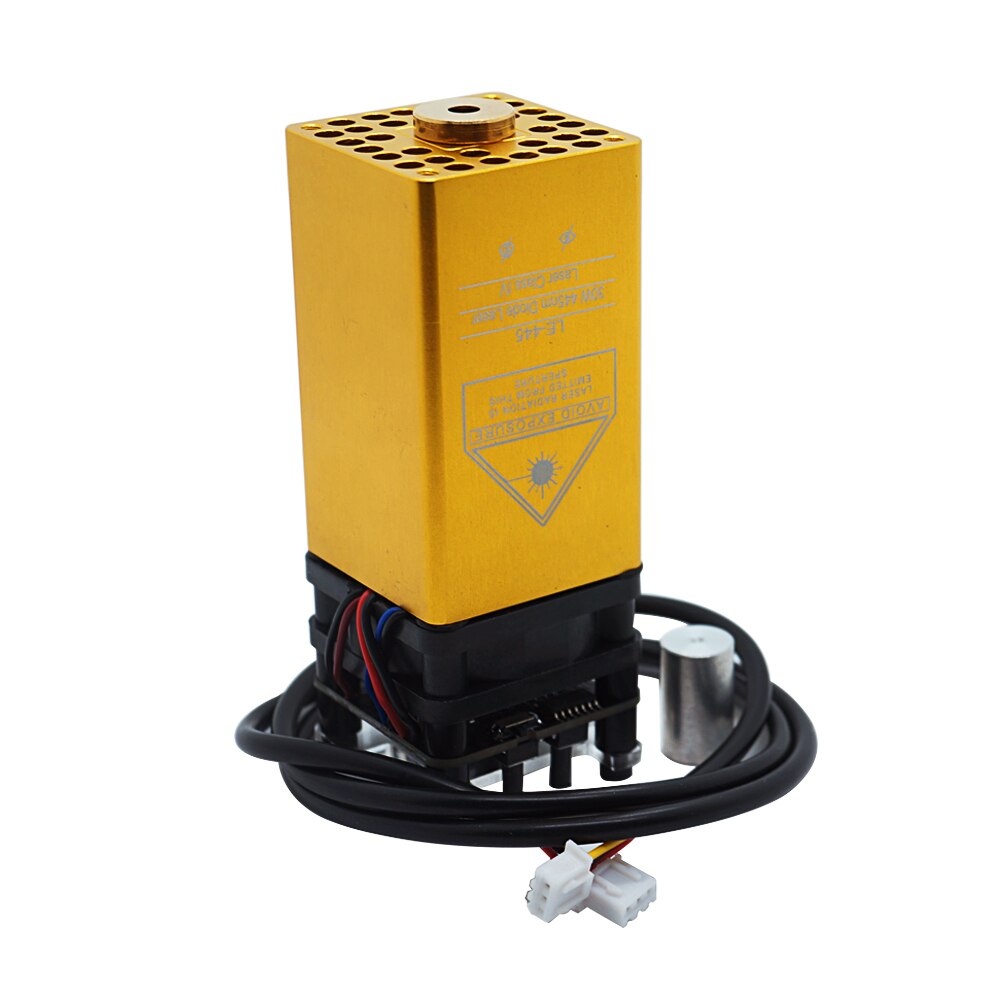

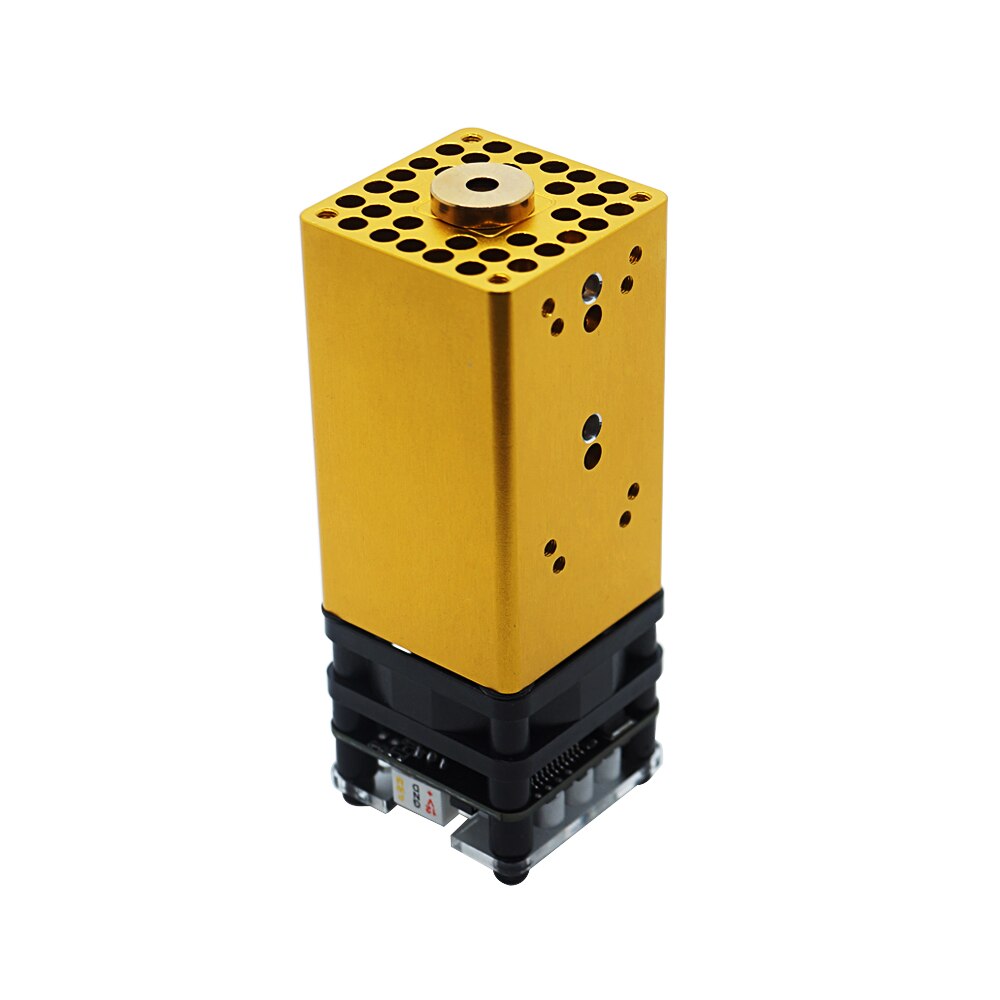

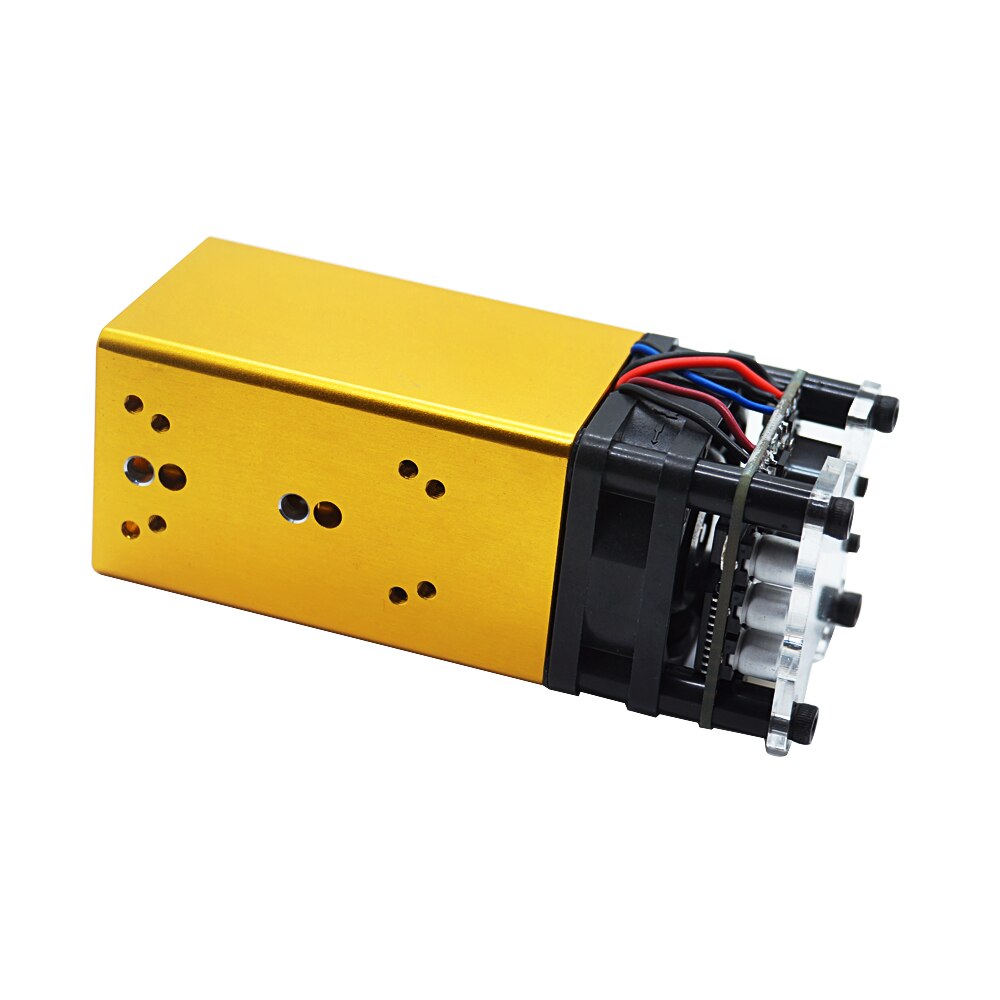

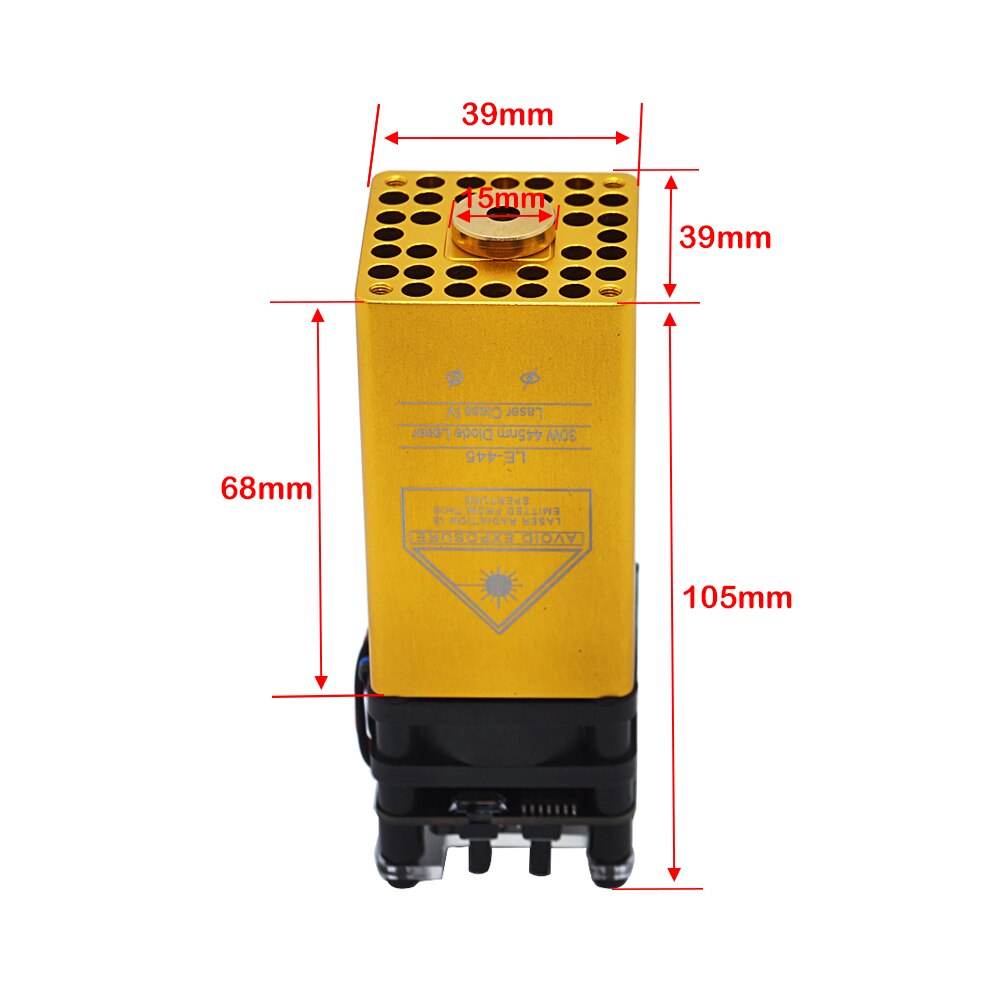

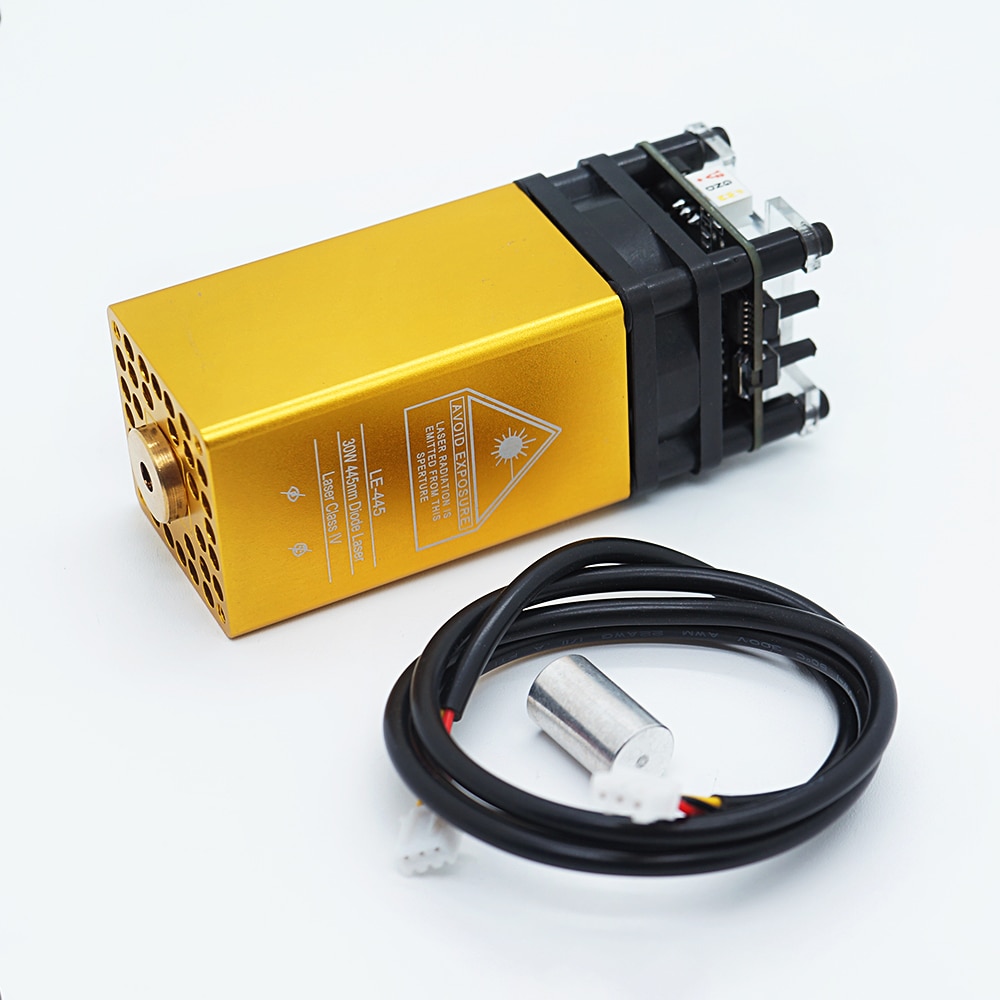

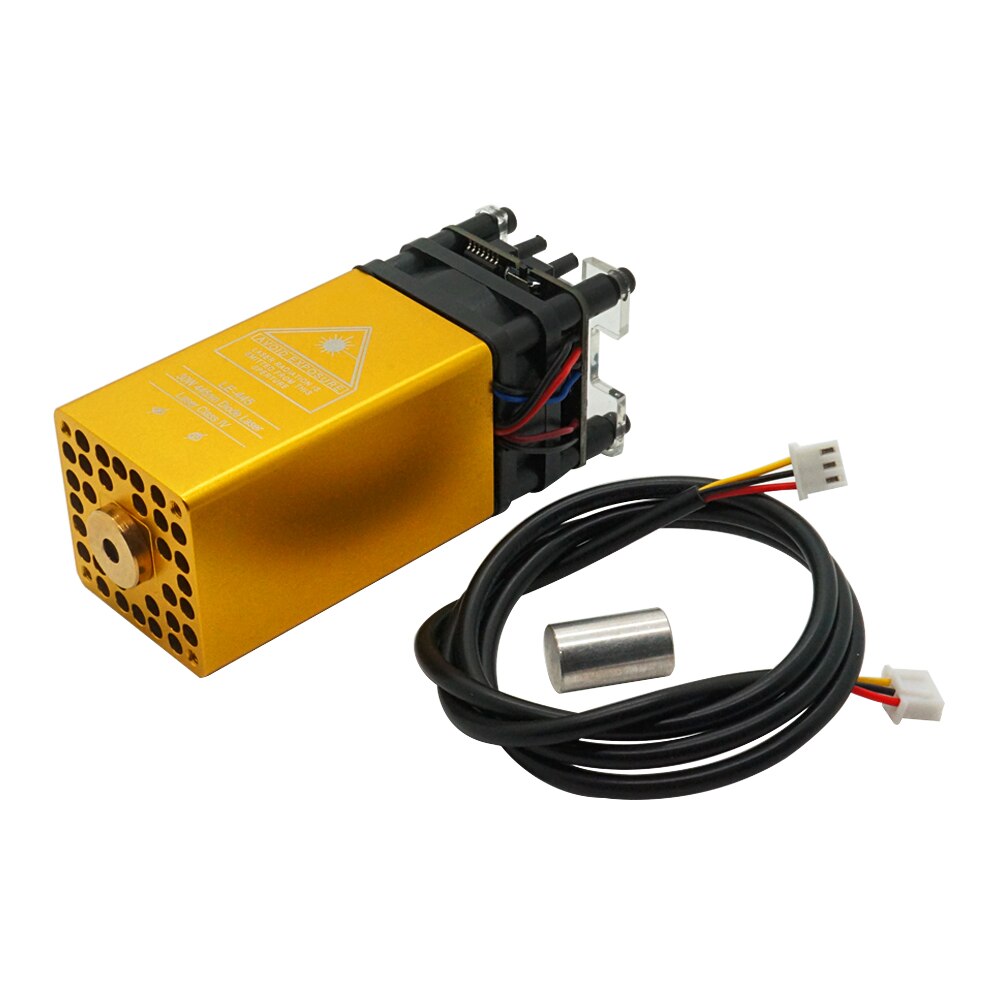

12V Desktop Laser Head 30W Diode Laser Module 445nm Fixed Focus Engraver Size 40mm for 3018 Plus Laser Cutting Carving Equipment
Material: Copper + Aluminum
Power: 30W(output power about 10W)
Wave Length: 445nm
Input power:12V 5a
Accuracy: 0.02mm
Drive Position: Behind
-
Is the Power Adjustable: PWM can be adjusted/software can control to adjust
-
Drive Protection: Surge protection, overvoltage protection
-

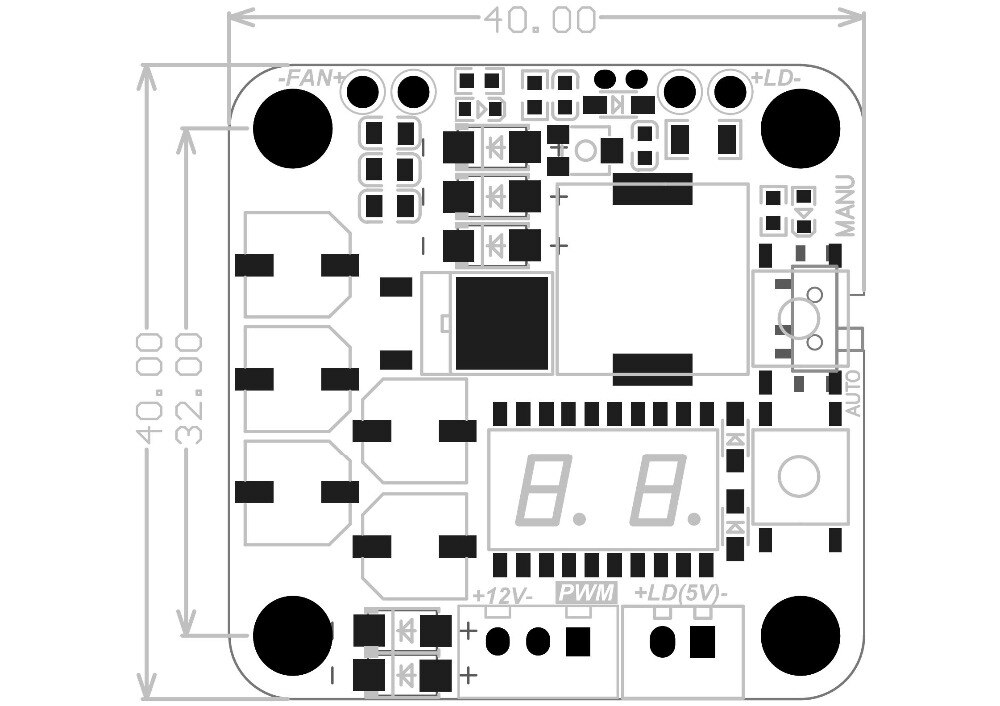

Control Line Installation Method: Pluggable 3pin (Red: 12V, Black: GND, Yellow: PWM)
-
Focus Range: 2cm
-
Power can be adjusted manually
-

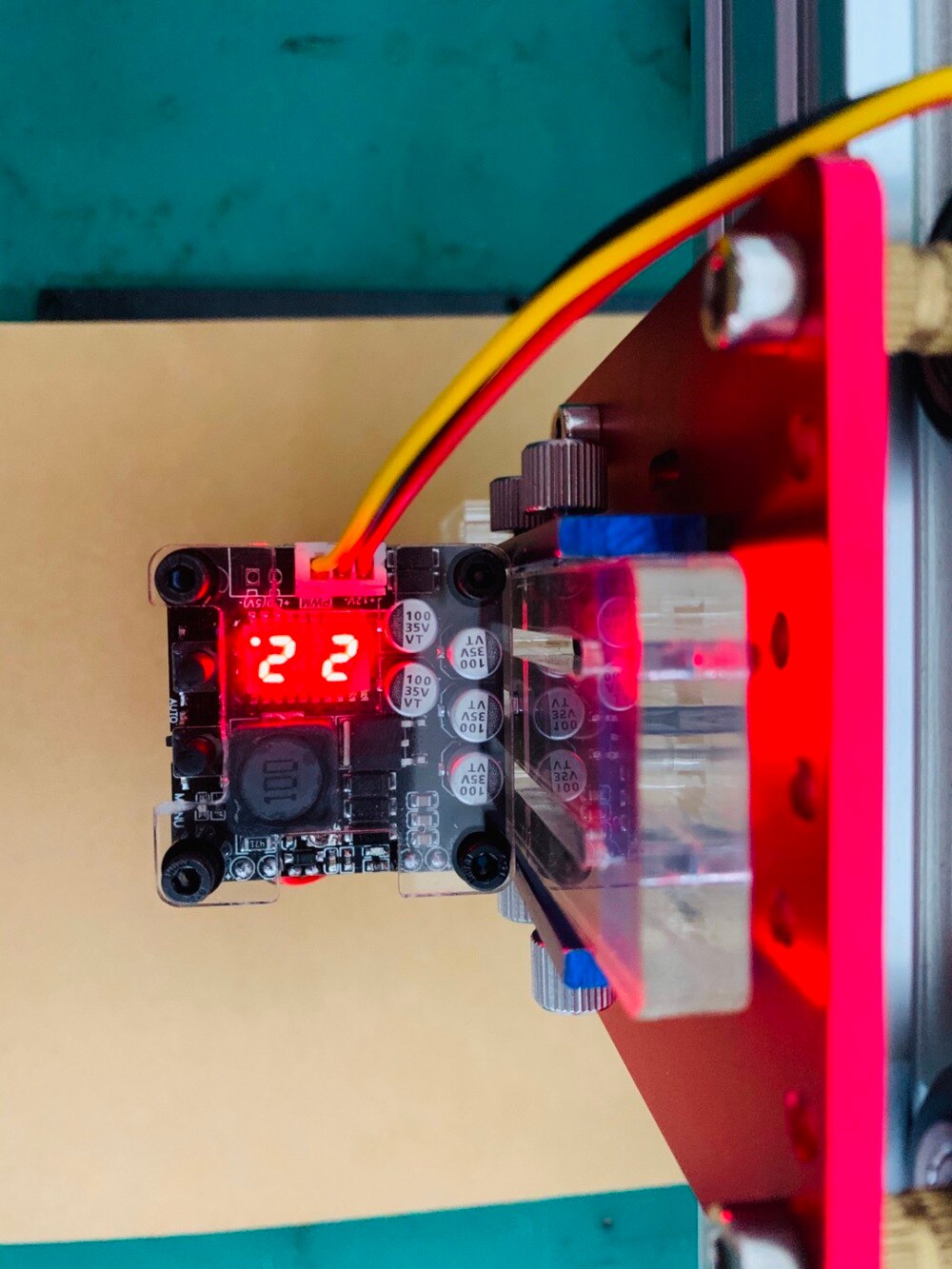

Can display temperature/power
-
Lifetime: 10000-20000 Hours
Warranty Period: 1-year

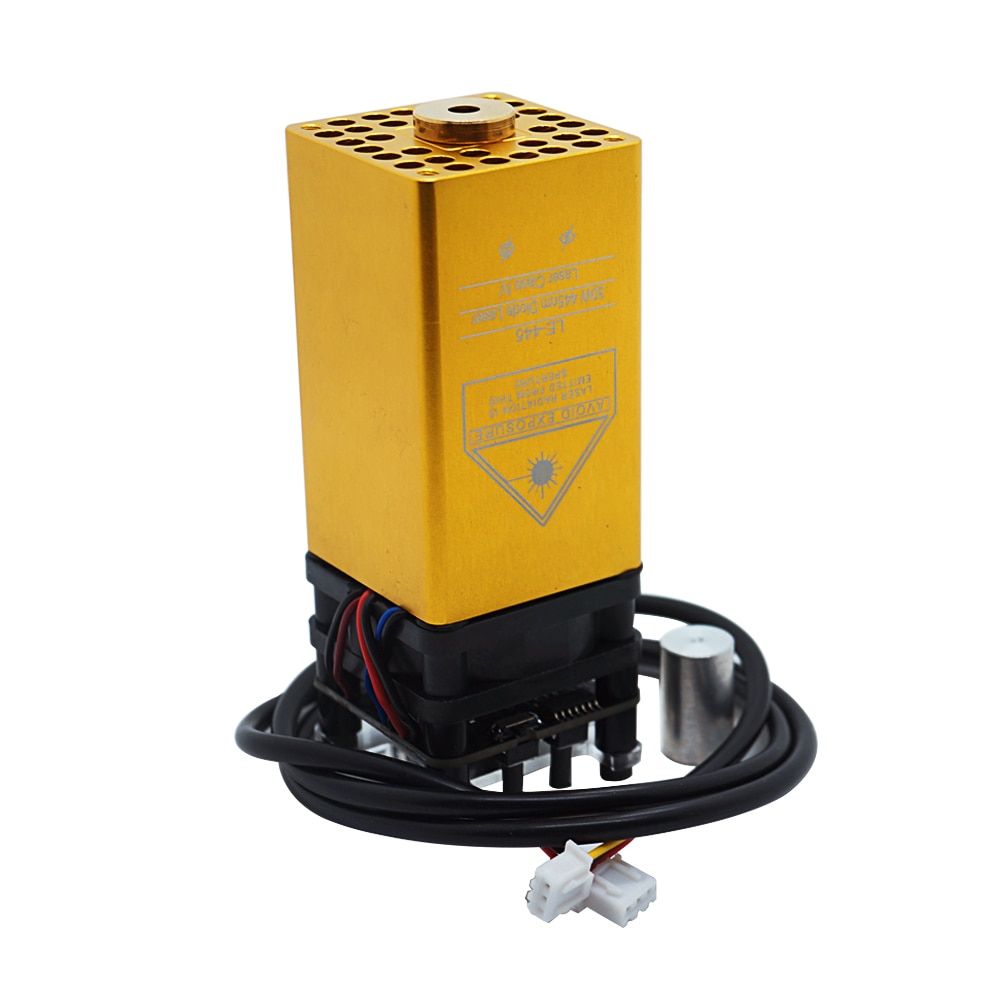

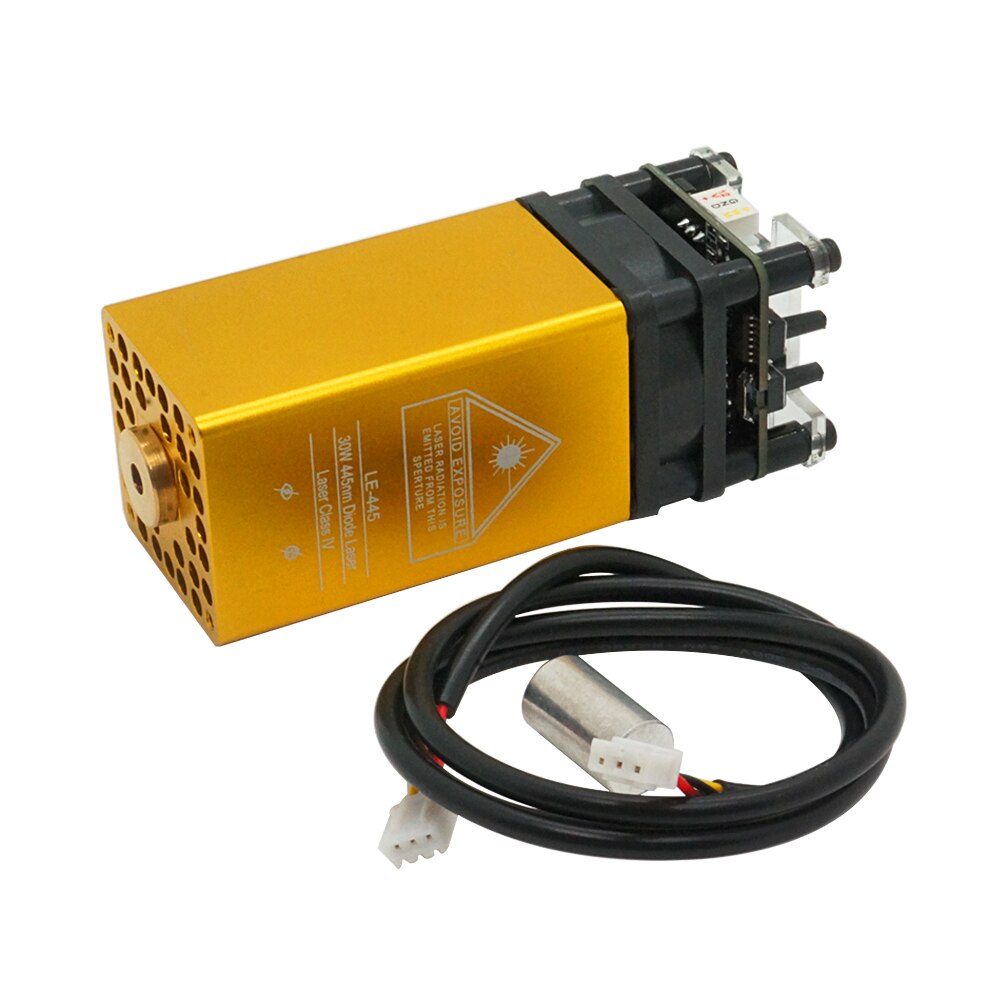

Packing List:
1*30W laser
1*glasses
1* 3pin-3pin cable
1* 3pin-4pin cable
1* Focusing column
(
