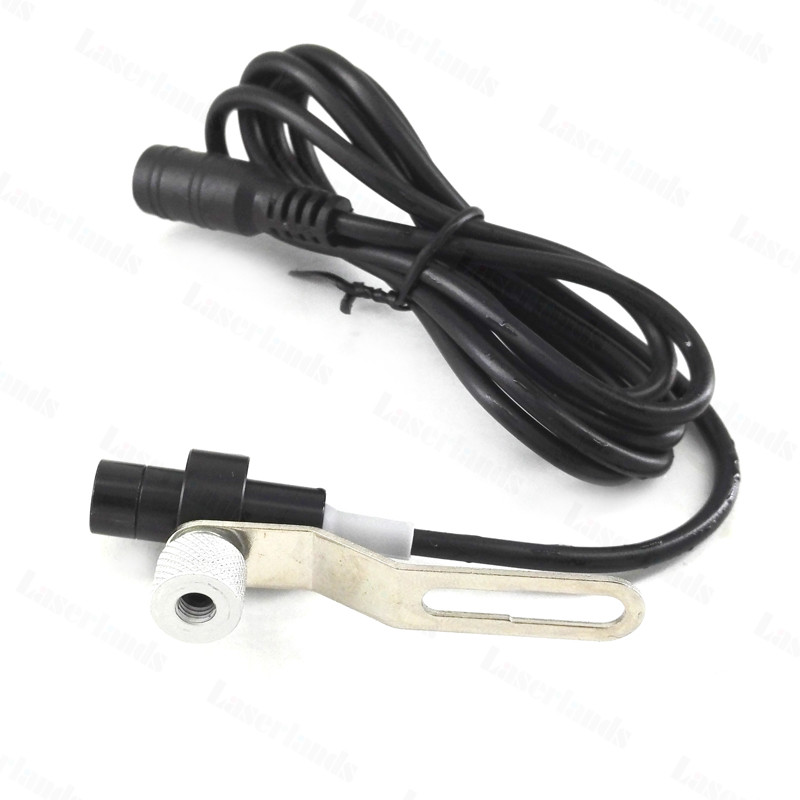

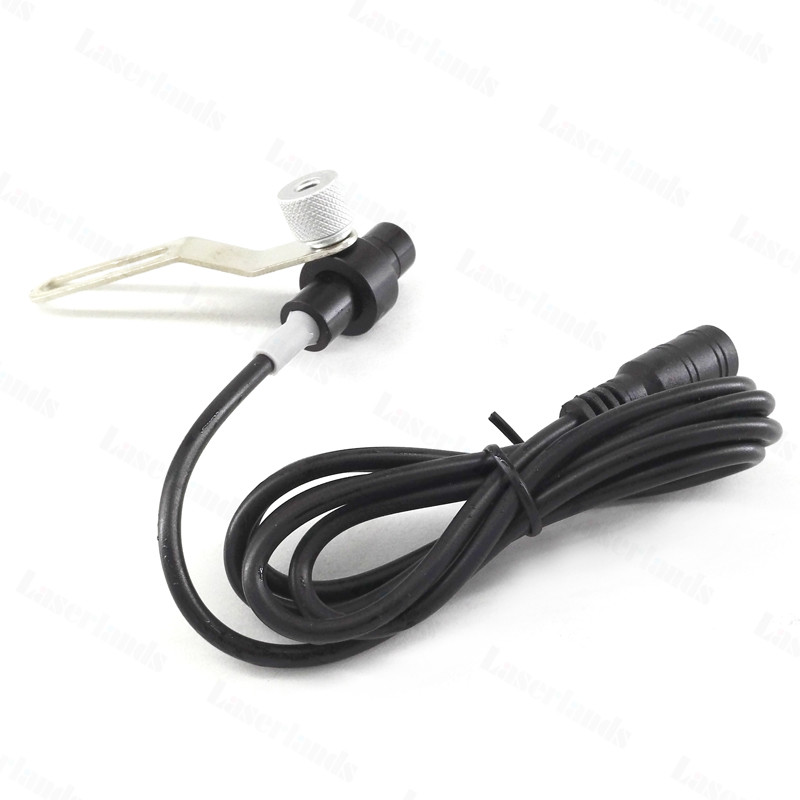

1030 635nm 10mw Red Line Laser Module for Punching Bench Drilling Machine Alignment Positioning Location

Laserland has Dot, Line and Cross Projecting Generator Laser Module for option. Please contact us for customization.

Wavelength: 635nm

Output: 10mW

Shape line

Laser diode in: Mitsubishi

Lens: Glass

Fixed focal length: 20-30cm

Working voltage: 5VDC

Working curreng: <40mA

Dimension: D=10mm L=30mm

Working temp.: -40~~+75 centigrade

Specifications

1. It is normally used for locating targets on punchine machines and bench drilling machines.

2. Wide working temperature which can be used from -40 centigrade till +75 centigrade.

3. Dust-proof, and shock-proof.

4. 60mm long clip can fix the module on your machine tightly.

5. Glass lens makes a clear and visible ellipse dot on the target.
