Description
- Brand Name: SNDWAY
- Size: 185*55*30MM
- Model Number: TA8120
- Wavelength Range: 1lux
- Type: Single Beam Spectrometers
- Measurement Range: 2000Lux,20000Lux,100000Lux
- Weight: 150g
- model: TA8120 series
- Decoration and construction content: Material procurement
Product Description

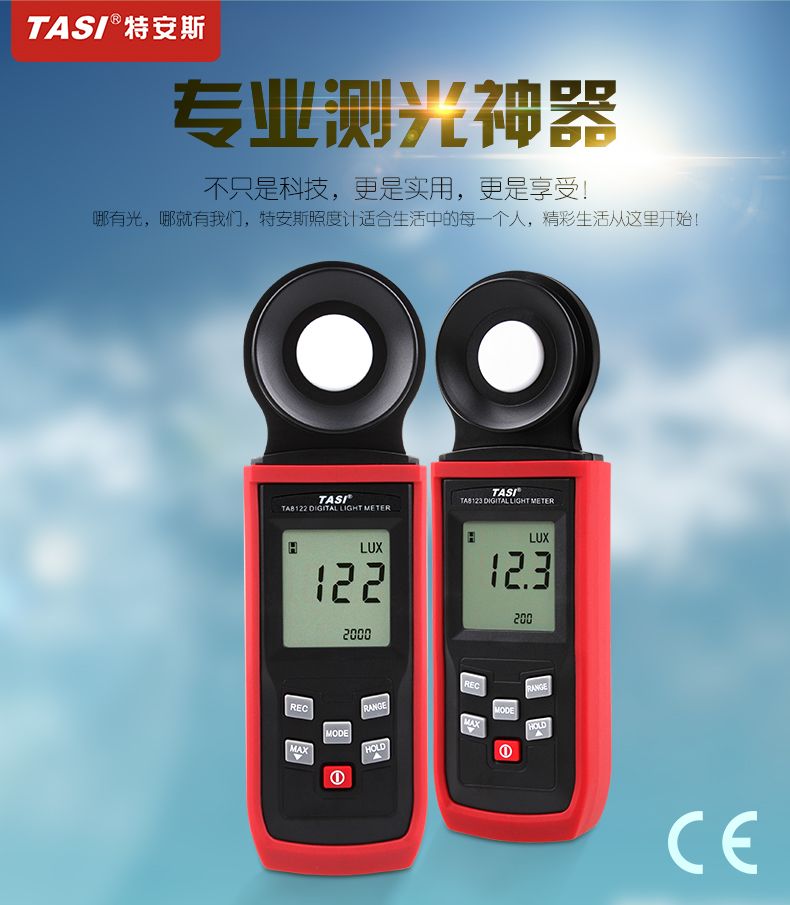

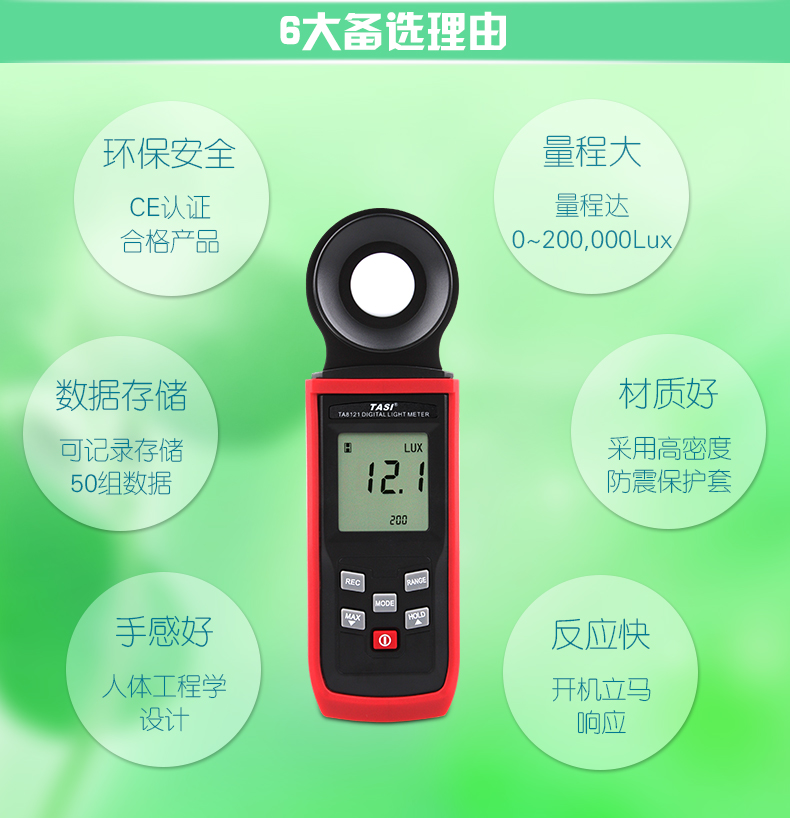

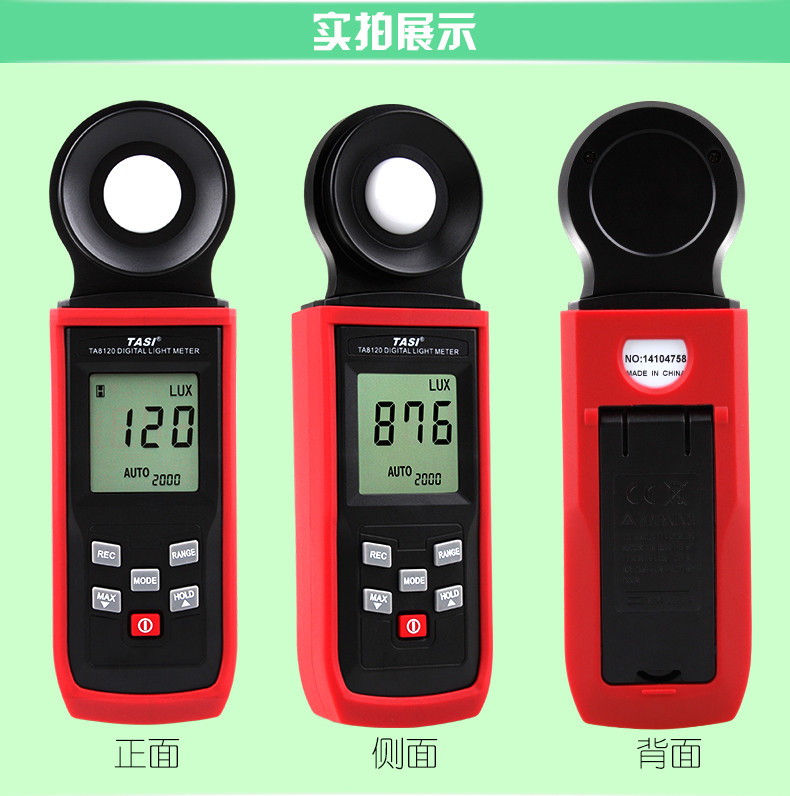

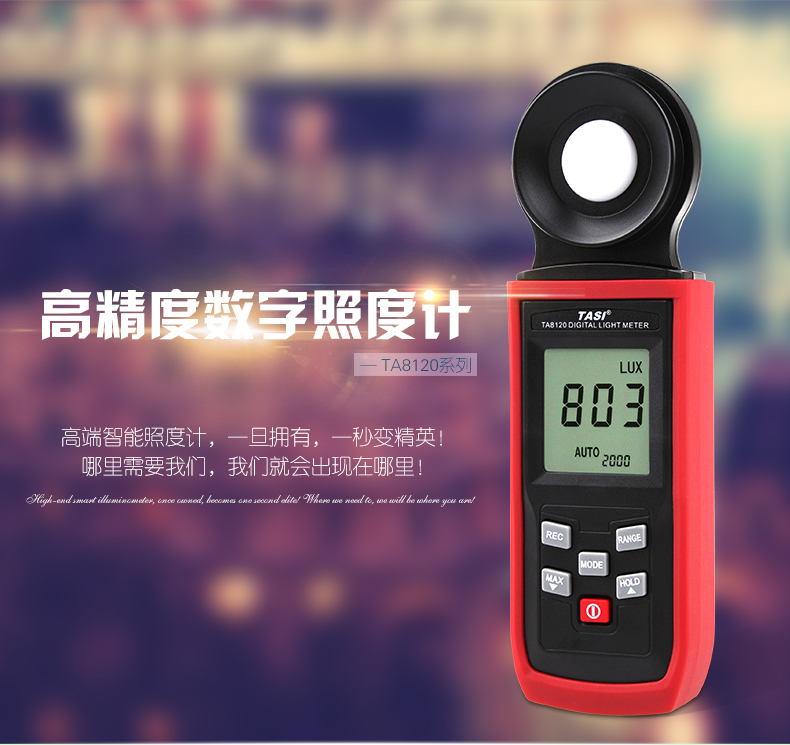

Item:Digital lux meter
Measuring level:2000Lux,20000Lux,100000Lux
Resolution:1lux
Accuracy:±4%rdg±10dgts(10.000 Lux).Color temperature 2856K Standard correction
Sample Rate: 2times/S
Repeatability:±2%
Data Record:can hold 50 measuring data(Time-delay record function)
Spectral Response:meet CIE Photopic

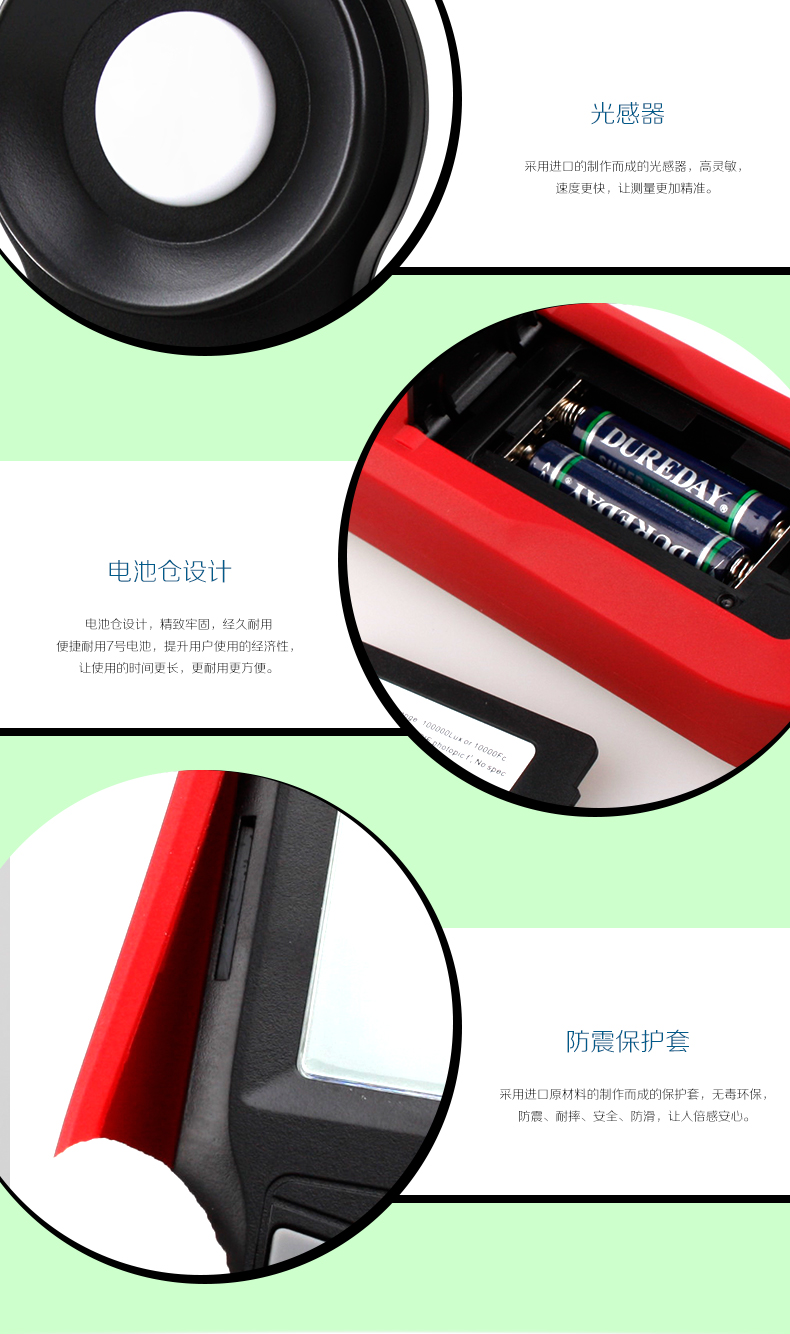

photoreceptor:Photodiode attached filter
Unit Selection:lux/Fc
Data Hold Function:Yes
Max/MIN:Yes

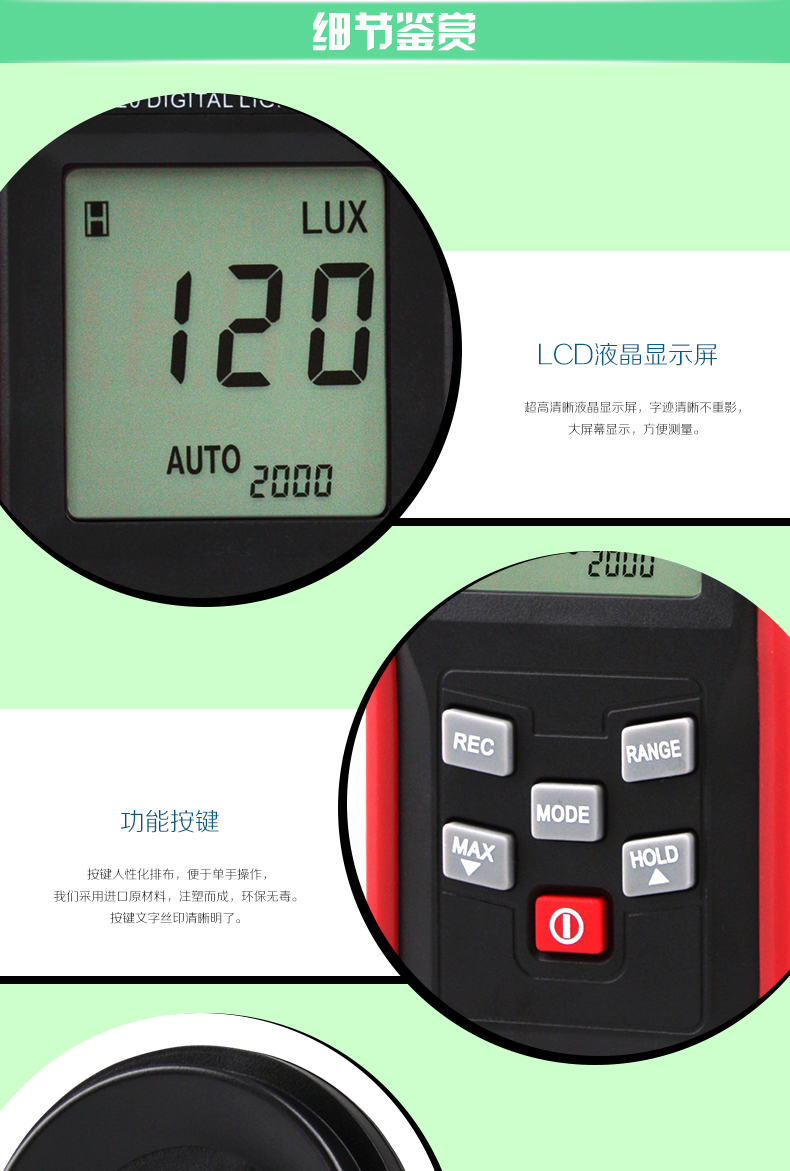

LCD display: Max Display 1999(4 number LCD display)
LCD size:35*32MM
Battery:2*AAA （not include）
Color:Black+Red

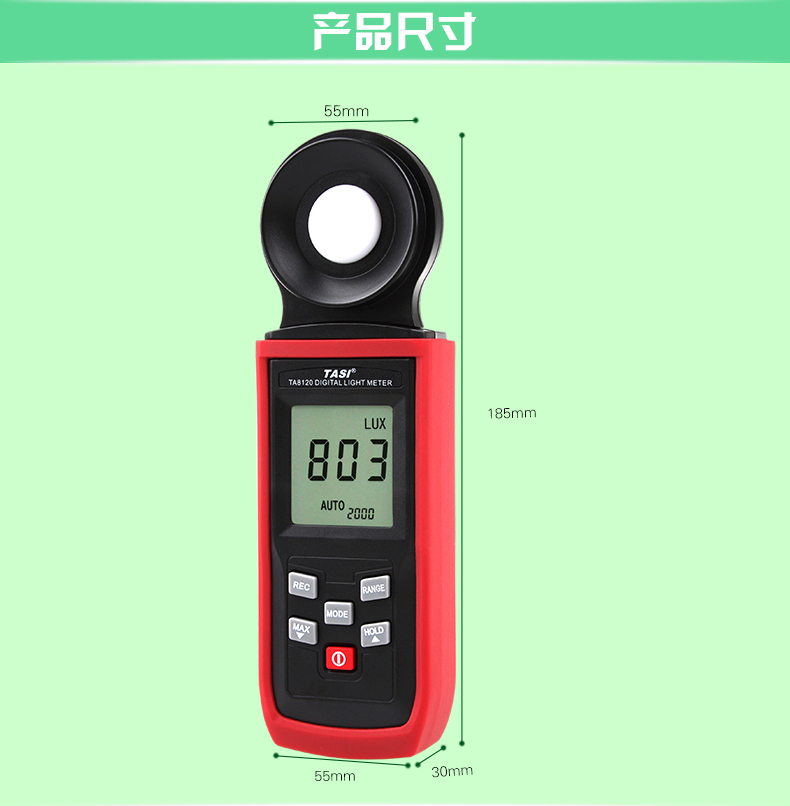

Product size:185*55*30MM
Product Net Weight:150g

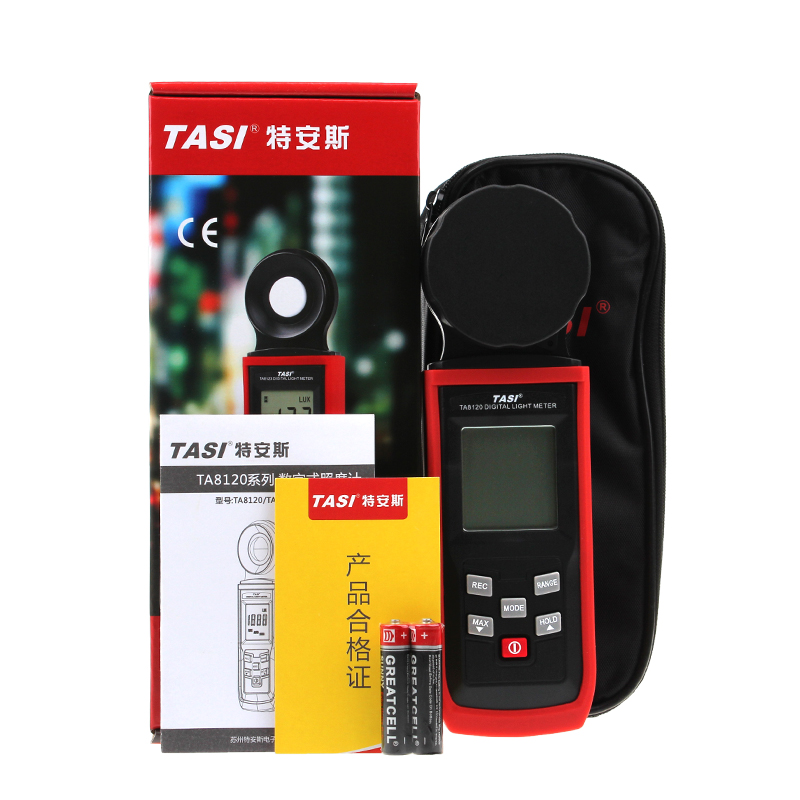

Packet Content:
1 x Digital lux meter
1 x Protection bag
1 x Instruction English Manual

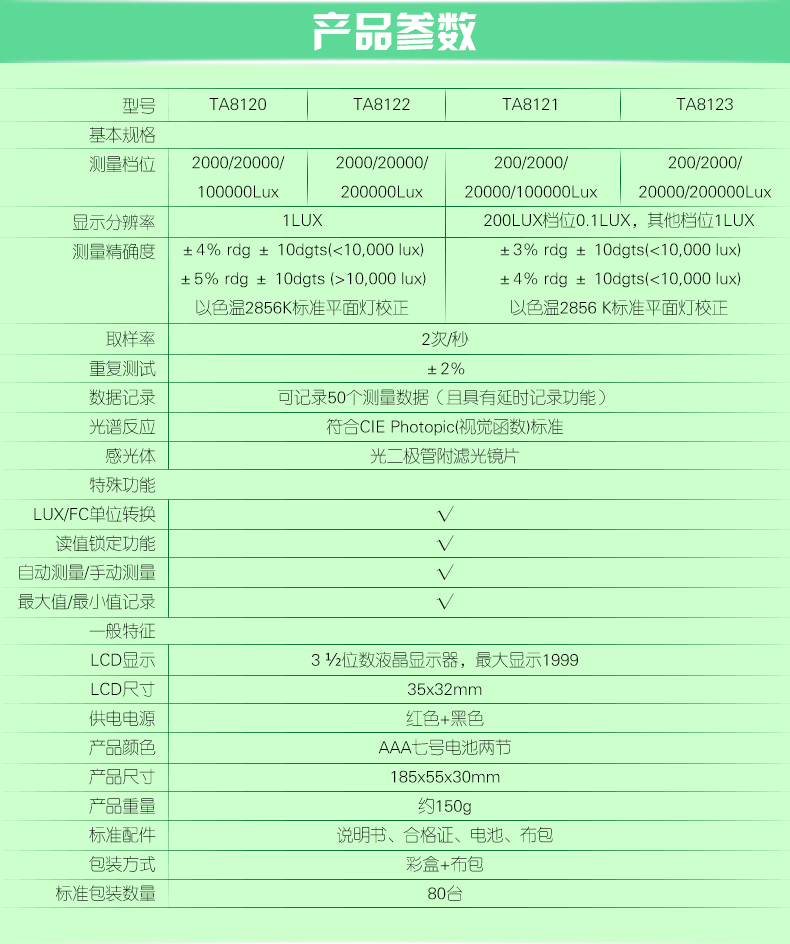

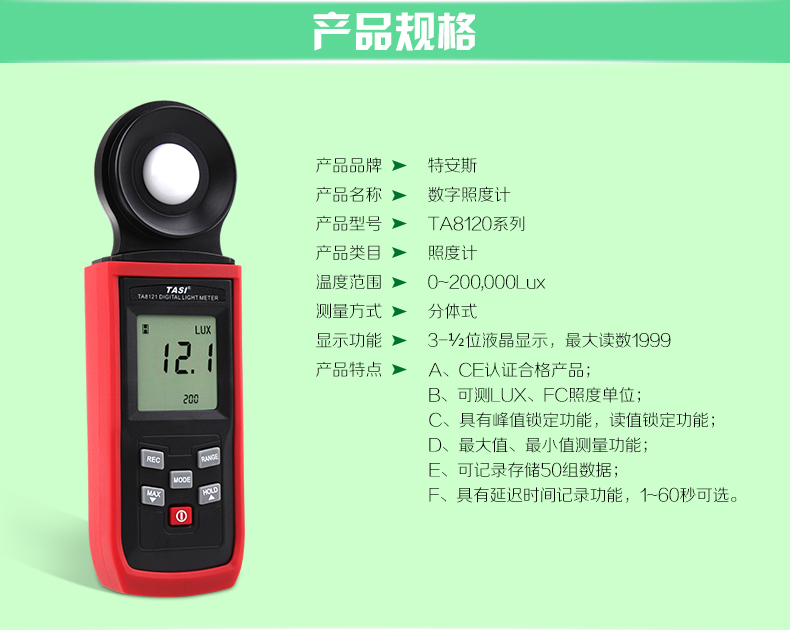

Product specifications:
|
model
|
TA8120
|
TA8121
|
|
|
display
|
3 1/2 bit liquid crystal display, maximum reading 1999
|
||
|
measuring range
|
2000Lux, 20000Lux, 100000Lux
|
200Lux, 2000Lux, 20000Lux, 100000Lux
|
|
|
display resolution
|
1 Lux
|
200Lux gear: 0.1 Lux, other stalls 1LUX |
|
|
accuracy
|
± 4% ± RDG; 10dgts (< 10000 Lux)
± 5% ± RDG; 10dgts (> 10000 Lux) (calibrated to 2856 K plane lamp) |
± 3% ± RDG; 10dgts (< 10000 Lux)
± 4% ± RDG; 10dgts (> 10000 Lux) (calibrated to 2856 K plane lamp) |
|
| photoreceptor | light emitting diode with filter lens | ||
|
repeated test
|
±2%
|
||
|
sampling rate / measurement speed
|
about 2 times per second
|
||
|
range conversion
|
manual or automatic measurement
|
||
|
maximum and minimum measurements
|
have
|
||
|
LUX/FC conversion function
|
have
|
||
|
automatic data acquisition and recording
|
can automatically record 50 measurement data (and with a delay time recording function, 1~60 seconds optional)
|
||
|
low voltage tips
|
have
|
||
|
operation and storage temperature and humidity
|
0° to 40 degrees Celsius (32 degrees Fahrenheit 104 degrees Fahrenheit to) < 70% R.H.
|
||
|
power supply
|
two AAA (7) battery
|
||
|
meter size
|
185mm(L) x 55mm(W) x 30mm(H)
|
||
|
weight
|
150g (including battery)
|
||
|
accessories
|
instruction manual, 7 battery two sections, qualification certificate
|
||
