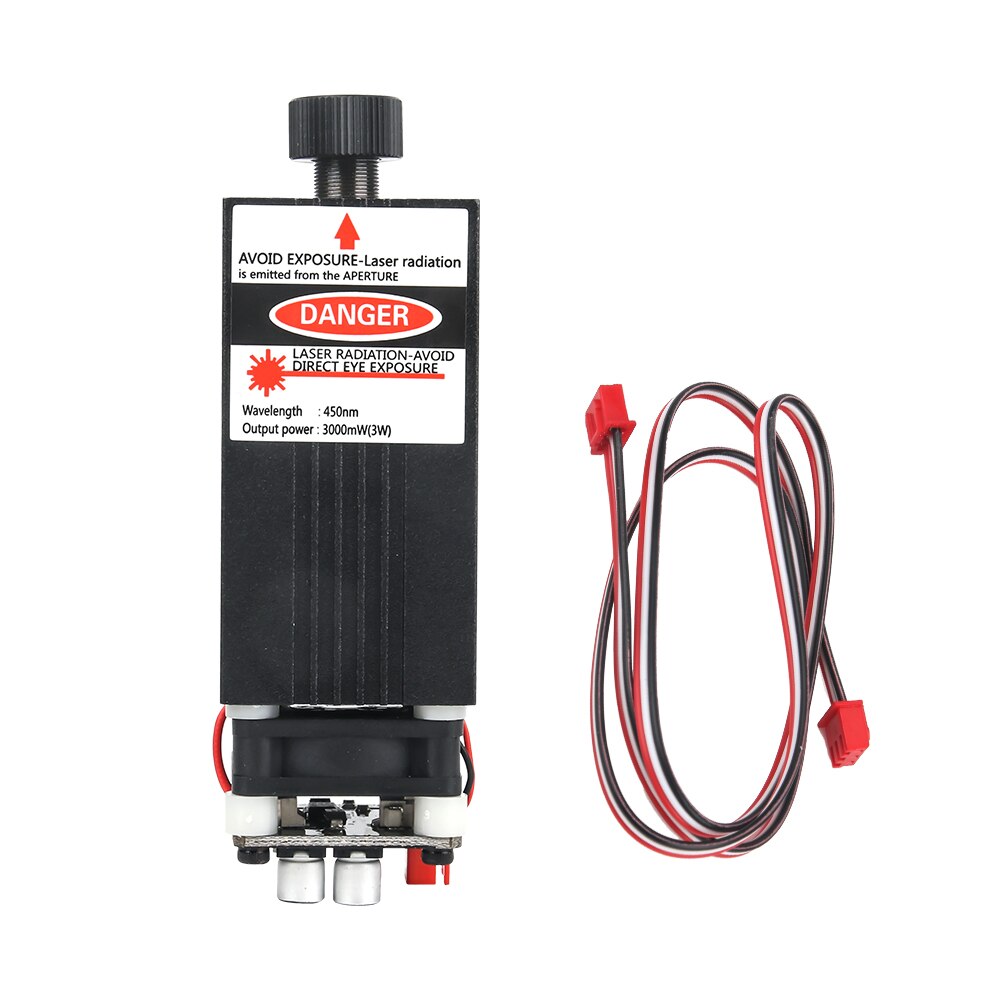

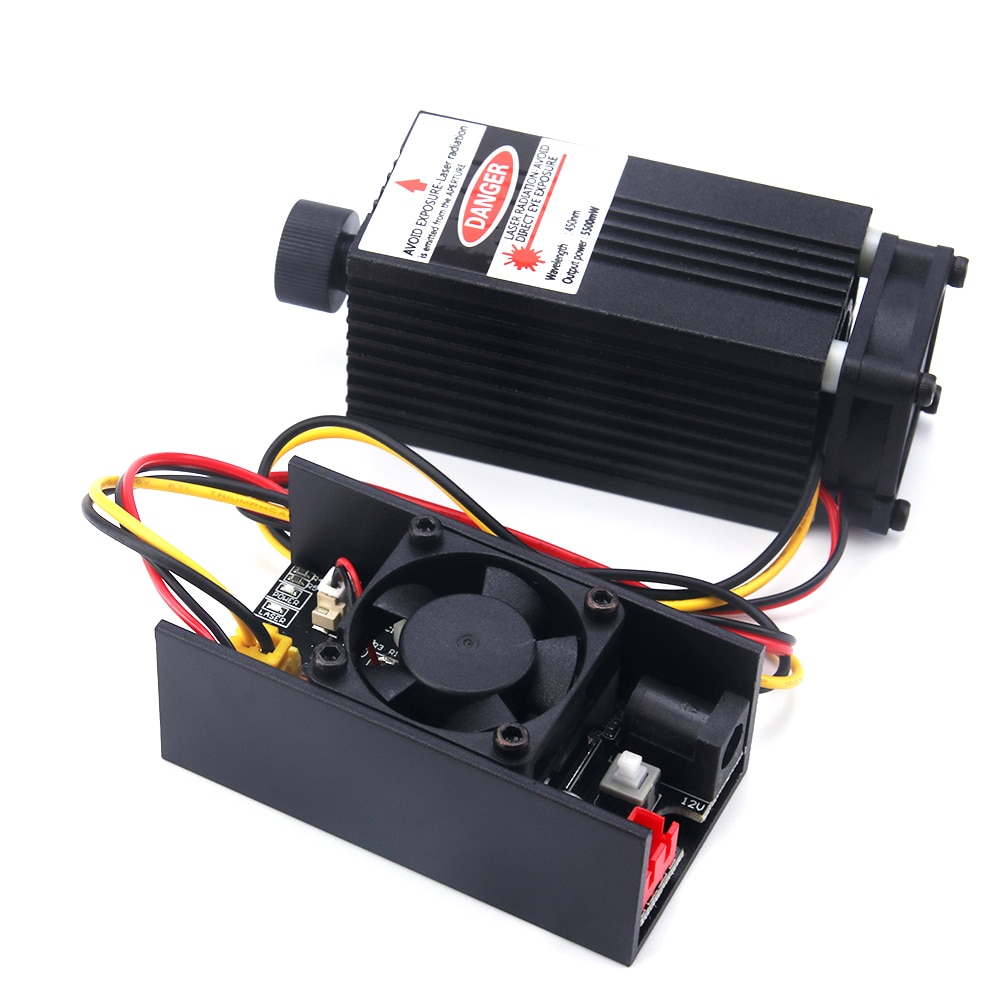

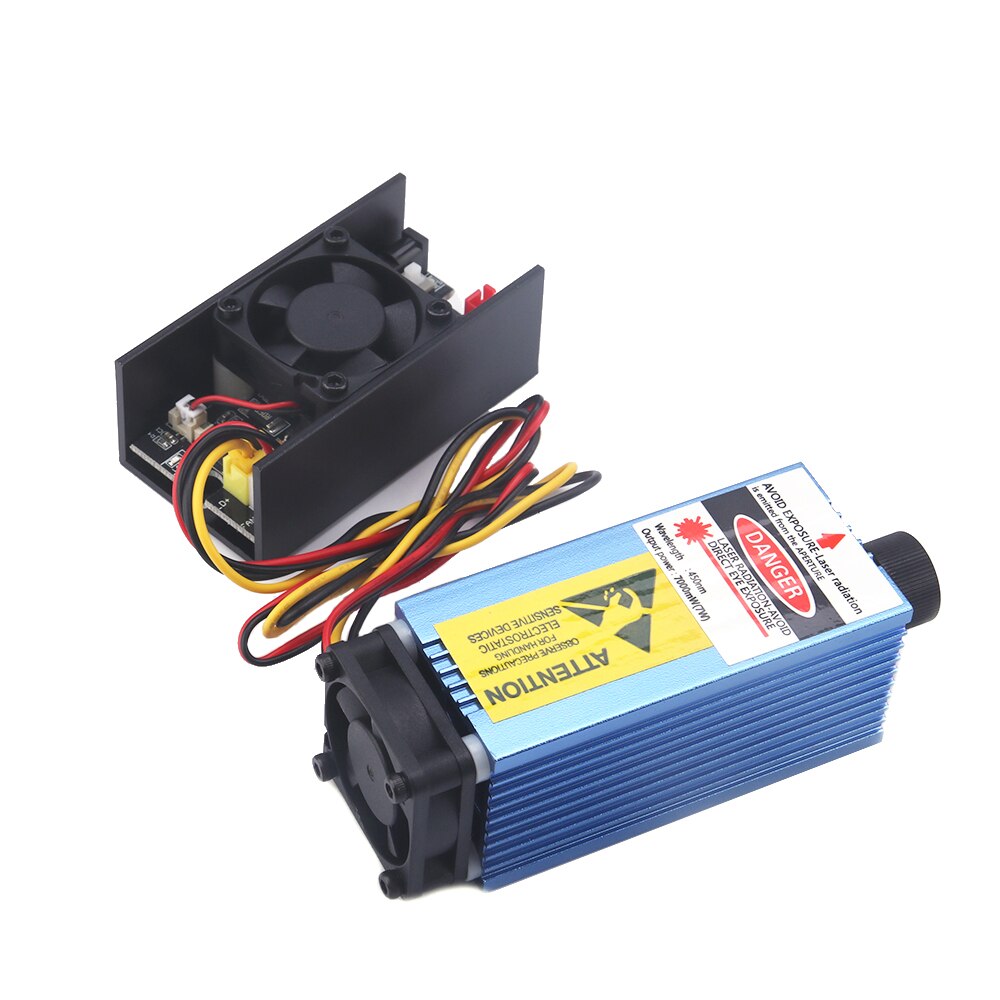

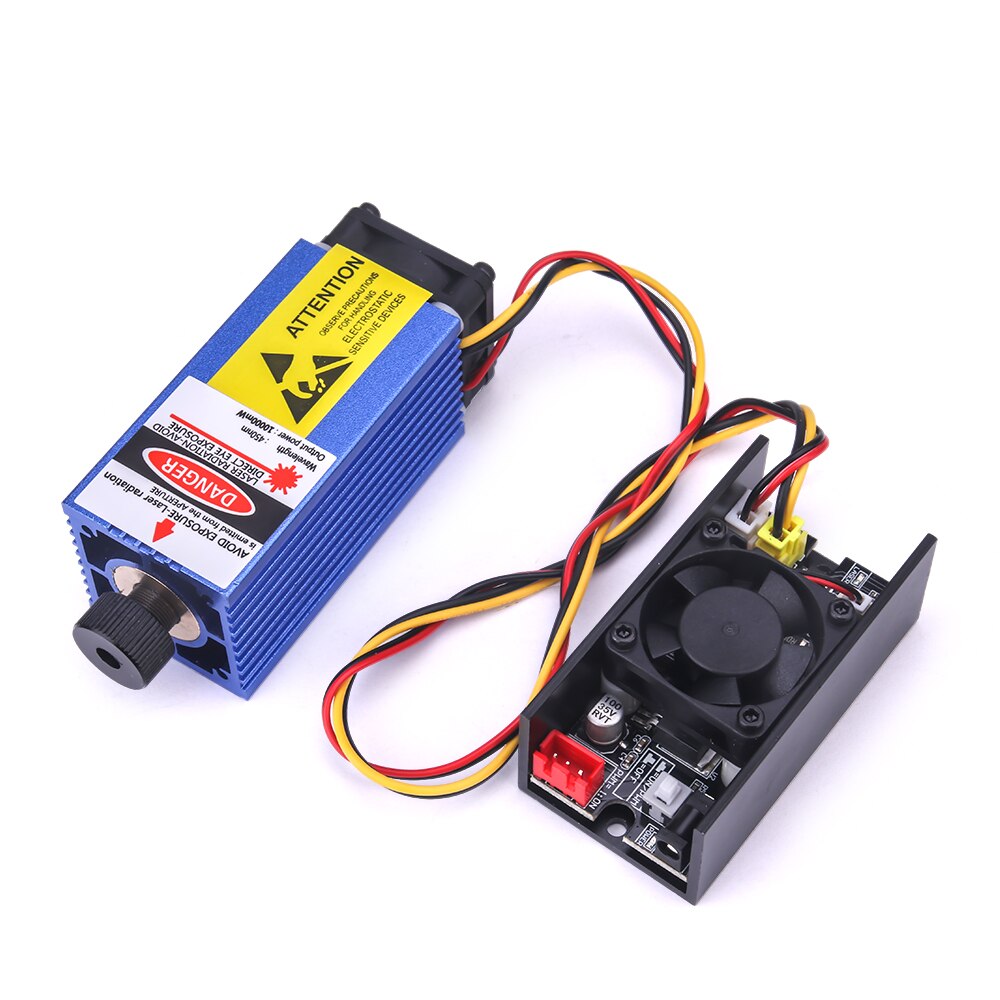

1-15w 450nm Blue Laser Module For CNC 3018 3020 Pro/Max Only

$55.00$236.50

SKU: 1005001355853123 Category:

Description

  • Type: Other
  • Origin: Mainland China
  • Model Number: 15w-1-15
  • is_customized: Yes
  • Material: Aluminium-copper Alloy
  • Usage: Home DIY

Specification:

▪ Wave length: 450NM (blue light)
▪ Power: 1000mw, 1600mw ,2500mw, 3000mw, 5500mw, 7000mw, 10W, 15W
▪ Electric current: 1A-5A
▪ Voltage: DC 12V
▪ Working temperature: -10 ~ + 40
▪ Driver module: PWM TTL control method
▪ Can adjust focus: Yes
▪ Life Time:> 10,000 hours
▪ Working Temperature: -40 ~ 75 ℃
▪ Cooling: air (fan + heat sink)
▪ Material: Aluminum, anodized surface
▪ Usage: can be engraved plastic, wood, acrylic, pvc, pcb, aluminum, wood or the like material.
▪Delivery list: 1 each for laser * goggles

NOTE:

①Please wear laser goggles when using the laser, do not directly touch the laser, so as not to damage the eyes and skin, otherwise it will cause permanent blindness and the consequences are at your own risk.
②Keep children and pets away from the laser module when the laser module is working.
③It is forbidden to use in flammable gas environment to avoid fire and explosion.
④ Do not disassemble the laser module without permission, otherwise it may cause damage. Thank you.
⑤ Our laser needle port is 3PIN line, suitable for 3PIN control board.
⑥If you have any quality problems, please send us a detailed video with a description of the problem. Please feel free to consult our customer service, we will quickly answer your questions

[Upgrade Design]
The blue laser module is designed for the CNC engraving machine. It is made of aluminum alloy and supports PWM signals. An external constant current drive module is added.

[Application]
Laser engravable kraft paper, wood, dark plastic, IC card, mobile phone case, leather (wallet), bamboo, rubber. This module is compatible with 1610 pro / 3018/3018 pro. The 15W laser can engrave wood, colored plastic, colored coated stainless steel, etc. In addition, it can cut 3 mm thin plywood, cardboard and other materials. It cannot engrave transparent, reflective or mirrored materials and metals.

[High quality]
High stability, low noise, faster speed and more professional after-sales service ❕

[Double heat dissipation]
🌀The laser aluminum body has good heat dissipation effect, and the drive module is also equipped with a fan, which can protect the laser and extend its service life.

[Easy to use]
You can refer to the photos we uploaded, just connect the 3-pin cable to the cnc control board port. Adjustable focus🔼

❣If you are not sure whether this laser is suitable for your CNC machine tool, please feel free to contact us

❣If you are an amateur, DIY handyman or artist, this laser head will provide you with an excellent experience.

Notice: this laser will support this cnc control board only !
